product description

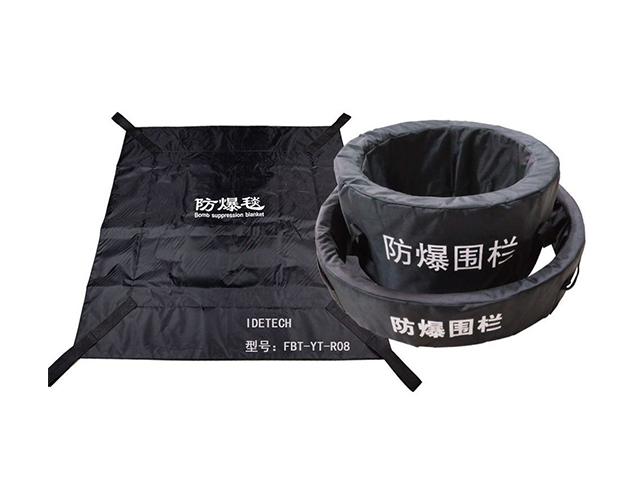

FBT-YT-R08 explosion-proof blanket has the characteristics of light weight, easy to carry, easy to operate, and excellent resistance to violence.It is used for the isolation and protection of explosives and requires explosion-proof equipment: valuable instruments, cultural relics files and special public places are necessary equipment for explosion-proofing of public security, armed police, civil aviation, railways, ports, customs, etc.
The product is tested according to the relevant technical conditions stipulated in GA69-2007 'Explosion-proof Blanket'.
FBT-YT-R08 explosion-proof blanket is used to temporarily cover explosive suspicious objects and explosives.The unique double-fence structure it adopts can form multiple blocking effects on explosive fragments and impact effects, effectively reducing the damage to surrounding people and objects caused by shock waves and fragments generated when explosives explode.It has high and stable explosion-proof performance, thereby more effectively improving the safety performance of people or objects near the explosion center.
Features
▲ Lightweight
▲ Easy to carry
▲ Easy to operate
▲ Excellent anti-knock characteristics
technical parameter
| composition | Blankets and fences are made from linings and jackets, etc.Blankets, fences and jackets are flat, free from snags, breakage, tearing and corrosion dirt, and the sewing stitches are straight, regular, suitable for tightness, uniform, free from jumpers and broken threads, and the sewing is firm |
| Explosion Proof Blanket Size | 1600×1600(mm) |
| Explosion-proof blanket | 1600mmX1600mm, weight≤13.5kg |
| Explosion-proof fence | Outer fence height ≥ 150mm, diameter ≥ 520mm, weight ≥ 4kg Inner fence height ≥ 300mm, diameter ≥ 430mm, weight ≥ 11kg |
| Total weight of blanket and fence | ≤30kg |
| Jacket material hydrostatic pressure resistance | ≥12kPa |
| breaking strength | Breaking strength of blanket and fence jacket material: greater than 1200N in both warp and weft directions |
| tear strength | Tear strength of blanket and fence jacket material: greater than 120N in both warp and weft directions |
Instructions
When the explosion-proof blanket and the explosion-proof fence are used together, first cover the suspicious explosive with the explosion-proof fence, so that the explosive is in the center of the inner fence, and place the suspicious explosive in the center of the outer fence, and then cover it with the explosion-proof blanket. The target is aimed at the center of the fence.When the Type 82-2 grenade was detonated, there was no scar on the target at a distance of 3 meters from the explosive.
Product Features

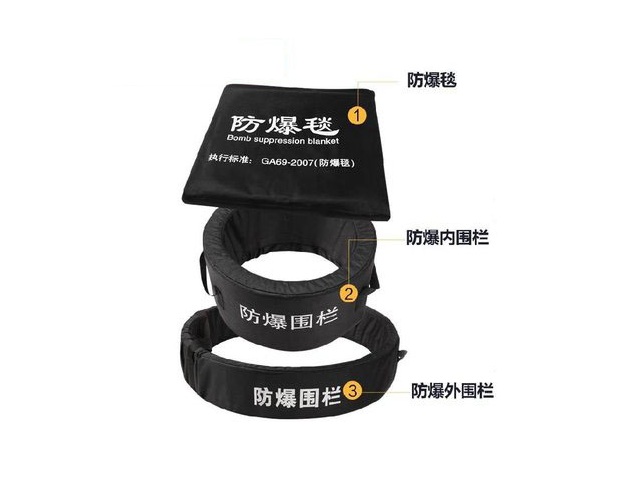

● Explosion-proof blankets are made of soft materials, each set of explosion-proof blankets is composed of blankets and fences
● The explosion-proof blanket is used to temporarily cover explosive suspicious objects and explosives. The unique double-fence structure it adopts can form multiple blocking effects on the explosive fragments and impact effects, effectively reducing the shock waves and fragments generated by the explosion of explosives. Injury caused by people and things
