product description

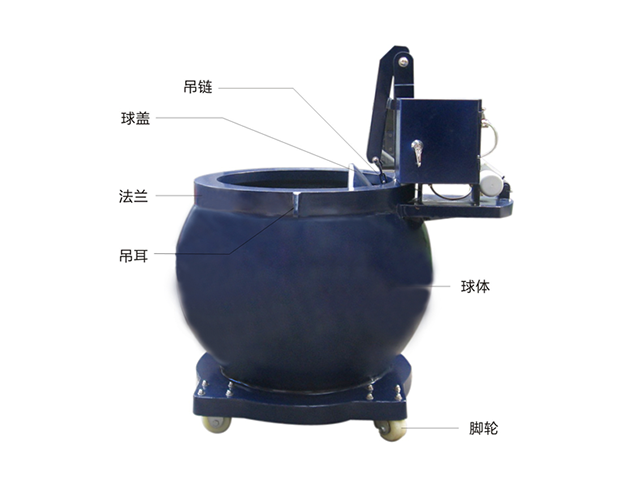

FBQ-2-450-YT200 explosion-proof ball is a device used to temporarily store and transfer explosives and dangerous goods to protect surrounding people and objects from harm.The explosion-proof ball is a closed ball with strong anti-explosion ability. When the explosive explodes, the shock wave and debris generated by the explosive are completely enclosed in the ball, and the high-pressure gas is filtered and discharged from the pressure relief hole, which can reduce the explosion. , noise reduction, the role of protecting the surrounding environment.
Features
▲ Strong anti-knock ability: 2kg TNT
▲ light weight: 420kg, it is the lightest one of the same specification in China
▲ The size of the dome cover is large: 450mm.Can fit 510*350mm rectangular objects
▲ Easy to operate and fully protect the personal safety of explosives: There is no need for close-range operation by EOD personnel. The way of opening and closing the dome cover is electric + handle shaking. Electric opening is divided into wireless remote control (distance greater than 20m) and wired manual control (equipped with a 30m long wired controller), fully protecting the surrounding personnel. Personal safety.When the remote control cannot be used, the manual crank can be used to turn it on.It is the only explosion-proof ball in China that integrates remote control and manual operation to open the ball cover.
▲ Self-contained power supply: No external power supply is required when the product is used, it comes with a 24V battery and contains a power indicator
technical parameter
| the inside diameter of | 800mm, outer diameter 840mm |
| Anti-knock equivalent | 2kg TNT |
| weight | 400kg |
| Inlet diameter | 600mm |
| The maximum opening size of the ball cover | 450mm |
| Dimensions | 1050×810×1170mm (length×width×height) |
| Electric remote control + manual opening method | 24V |
