product description

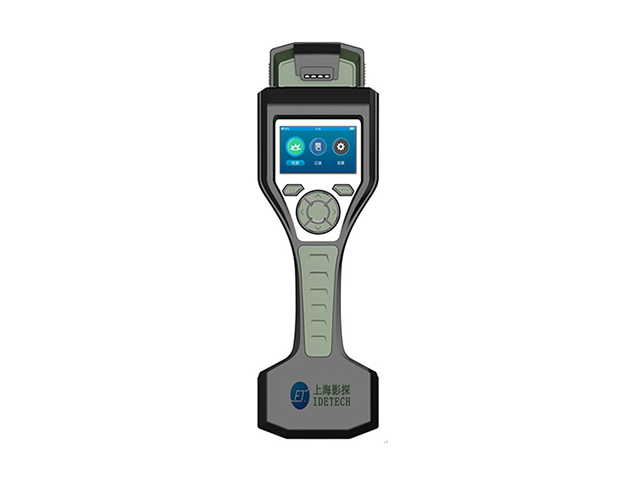

The SHYT-YTI explosive detector is a micro-trace explosive detection instrument based on the fluorescence-sensitive thin film prepared by the chemical assembly of the monomolecular layer of the fluorescent conjugated polymer as the core technology.The instrument realizes high-sensitivity detection of the object to be tested by detecting the change of fluorescence intensity when the film is stimulated radiation.The instrument can detect more than 40 kinds of military and civilian explosives or important explosive intermediates.The instrument is currently one of the lightest, smallest and fastest portable high-sensitivity trace explosive detection instruments on the market.
Product performance
▲ Simple operation, one-button detection
▲ It can detect a variety of explosives or their intermediates such as nitrate, nitrate, ammonium nitrate, and soil explosives.
▲ Using the most advanced fluorescence sensing technology, no radioactive source
▲ Two working modes of non-contact suction sampling and contact wiping sampling
▲ Thin-film devices can be reused within the range of self-test effective values
▲ Short response time
▲ Low power consumption, hand-held, long working time
▲ Strong environmental adaptability
▲ With sample classification and online upgrade of sample database
▲ Industrial-grade safety protection design
technical parameter
| Does it contain radioactive sources? | 否 |
| Types of detectable explosives | Common military, civilian, homemade explosives and some intermediates |
| Sampling method | Aspirating sampling + swabbing sampling |
| Classification of test results | With detection result classification function |
| Online upgrade | Online upgradeable sample database |
| Alarm mode | Sound alarm, image alarm, wireless alarm |
| Classifiable Explosives Category | Explosives can be divided into nitrates, soil explosives |
| Response time | ≤ 10 seconds |
| Boot warm-up time | ≤ 15 seconds |
| False alarm rate | ≤ 1% |
| Thin film device | Reusable within valid value range |
| Self-cleaning time | ≤ 15 seconds |
| display | 3 inch industrial grade color transflective screen |
| interface | USB |
| Amount of stored data | 1000000 Articles |
| weight | ≤ 1.2kg |
| work energy | ≤ 4.5W |
| battery capacity | 7800mAh |
| battery life | ≥ 12 hours |
| Working temperature | Applicable working temperature: -20℃～60℃ |
| humidity | ≤95% (no condensation) |
| storage environment | clean, dry and ventilated |
| temperature | -40℃～55℃ Humidity: ≤95% |
| physical dimension | 315mm×109mm×65.5mm |
