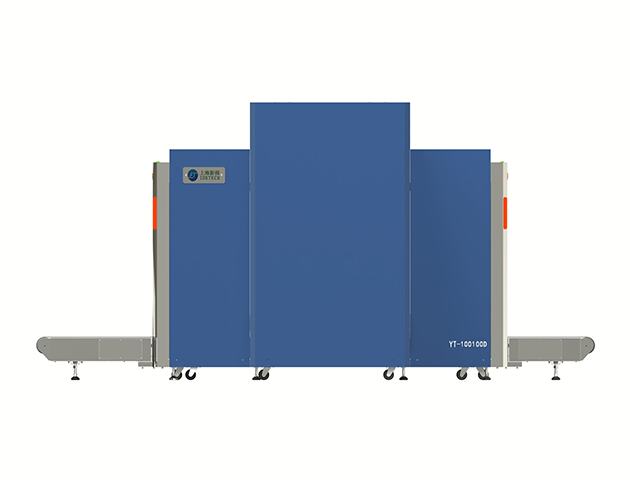

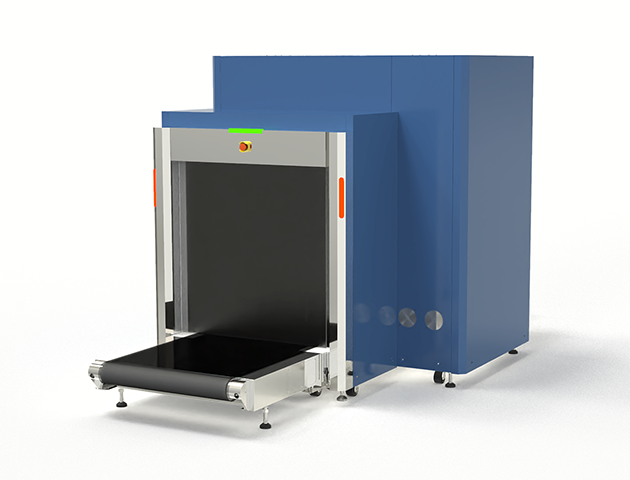

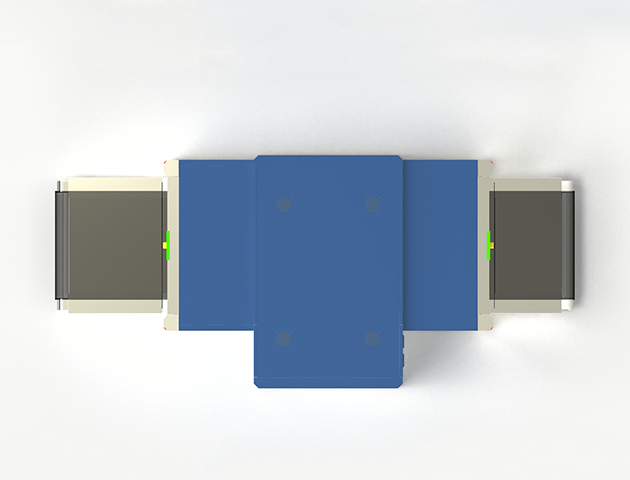

YT-100100D
product description
YT-100100D dual-source dual-view X-ray security inspection equipment is a multi-energy, multi-view X-ray luggage inspection equipment independently developed by Shanghai Shadow Detective Electronic Technology Co., Ltd. It adopts the latest imaging technology and can quickly and effectively detect various dangers It is suitable for carry-on luggage security inspection, and can accurately detect organic, inorganic and mixtures in luggage.The equipment is beautiful in appearance, clear in image, excellent in performance, safe and reliable, and makes dangerous goods nowhere to hide.
Application field: public entertainment places, logistics systems, public security systems, tourist attractions, government agencies, highways, subways, railways, civil aviation, customs, etc.
Features
▲ Efficient and precise: Powerful substance identification function and auxiliary identification function of dangerous goods, different colors distinguish organic substances, inorganic substances and mixtures, the image is clear, translucent, and has a strong sense of hierarchy. Combined with a variety of image processing modes, it can quickly and accurately identify contraband and improve the efficiency of security inspection operations. .
▲ Easy to operate: It has one-key shutdown and custom function keys, and is equipped with a quick operation guide, which is simple and easy to understand.
▲ Safe and reliable: The side plate protection adopts 3mm thick lead plate, and the lead curtain adopts double-layer staggered peak stacking arrangement, which effectively protects against ray radiation, has a lower leakage rate, and meets human health and safety standards.
▲ The logo is eye-catching: The signs, warnings and prohibitions for the import and export of equipment are unified and complete, and the setting standards are reasonable, which can effectively prevent accidents.
▲ Powerful: Optional video surveillance, multi-machine networking, dangerous liquid alarm, explosives/drug alarm, AI artificial intelligence judgment, remote management and other functions.
General parameters
| Channel size | 1010mm×1006mm（W×H） |
| Penetration | Not less than 40mm |
| Penetration resolution | AWG32 |
| line resolution | AWG38 |
| spatial resolution | Horizontal 1.0mm, Vertical 1.0mm |
| Teleport height | 300mm |
| Transmission speed | 0.2m/s 0.3m/s 0.4m/s (optional) |
| Anode voltage | 160KV |
| maximum load | 200kg (evenly distributed) |
| monitor | 21.5 inches |
| Grayscale resolution | Level 22 |
X-ray generator
Number of ray sources: 2
Ray beam irradiation direction: top-illuminated, side-illuminated
Cooling method: 100% sealed oil cooling
Radiation Safety
Single inspection dose: ≤10uGy
Leakage radiation dose rate: At any place 5cm away from the outer surface of the equipment, the leaked radiation dose rate of the X-ray machine is ≤1uGy/h
Food, drug and tape safety: multiple exposures have no effect
System functions
Date/Time Display; Baggage Counting; User Management; System Working Timing; Ray Beam Output Timing; Automatically Diagnose Parameters and Working Status at Power-on; Image Storage and Retrieval; Bidirectional Scanning; Dangerous Goods Image Insertion (TIP); ; Image presentation system.
installation data
Appearance dimensions (excluding extension frame): 3580mm(L)×1680mm(W)×1830mm(H)
Operating temperature/relative humidity: 0℃±3℃～+40℃±2℃ / 5%～95% (non-condensing)
Storage temperature/relative humidity: -20℃±3℃～+60℃±2℃ / 5%～95% (non-condensing)
Power supply: AC220V (-15%～+10%), 50Hz±3Hz
Power: 1.2KW
