product description
YT-100 Dangerous Liquid Detector is a security inspection instrument specially developed and produced by our company for detecting flammable and explosive liquids.It adopts quasi-static computer tomography technology to determine the flammability and explosiveness of the liquid to be tested by measuring the dielectric constant and conductivity.The detector can distinguish liquid explosives, gasoline, acetone, ethanol and other flammable and explosive liquids from safe liquids such as water, cola, milk, juice, etc. without direct contact with the liquid.When using this method to detect liquid, the detection result has nothing to do with the size of the container where the liquid to be tested is located, and the air gap between the detector and the container will not affect the measurement result.
Applications
The instrument can be widely used in security inspection, prevention of terrorist attacks, prevention of fire and other fields

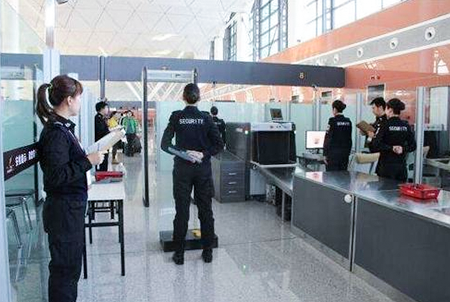

● traffic department: Railway, station, airport, subway
● government department: Embassy, police station, fire station
● Public places: Large conference venues, stadiums, ports, etc.

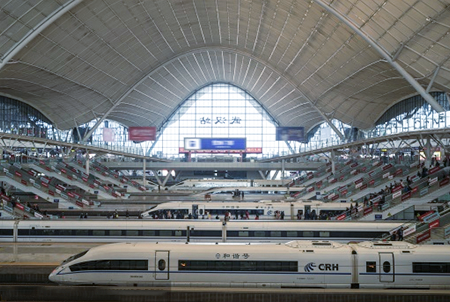

railway
transportation
Features
▲ Easy to operate: Intelligent system, easy to operate
▲ Fast detection: The result is quickly determined, accurate and fast
▲ Safe and reliable: No radiation, safe and environmentally friendly
▲ easy maintenance: Easy to carry, less wearing parts, easy maintenance
▲ NDT: Using non-invasive security inspection technology, liquid items can be safely inspected without opening the package
▲ Powerful: The equipment can detect liquid items in glass, plastic and other containers
▲ The logo is eye-catching: The man-machine interface of the device should provide a full Chinese or graphical interface, with its own light source and night-time fill light function
▲ automatic verification: The device has a self-calibration function, and the self-calibration time is not more than 10s
▲ Data output: Able to export data with standard network interface or USB interface
▲ Wide detection range: Can detect gasoline, diesel oil, kerosene, nitrobenzene, methanol, acetone, n-amyl alcohol, tert-butanol, cyclohexanone, propylene oxide, dichloroethane, chloroform, acetaminophen, isopropyl alcohol, xylene , toluene, more than 100 species
General parameters
| Specification | 210 X 50 X 70mm |
| weight | 195g (including battery) |
| ) supply voltage | 3V |
| Working current | 270mA |
| Power consumption | 0. 8W |
| power supply | Two AA batteries |
| boot time | less than 1 second |
| Detection time | less than 1 second |
| alarm sound | 79dB |
| Use environment | Temperature 0-40°C, Humidity: 0-95%RH (non-condensing) |
| The maximum wall thickness of the container can be detected | 8nm non-metallic container |
| Effective distance between the detector and the side wall of the container to be tested | Within 3nm |
| data storage | Not less than 200,000 |
| Equipment single service life | The service life of the equipment is not less than 10 years without replacing key components (excluding consumables) |
