product description
High-definition ultra-thin portable X-ray inspection machine (model: YT-1417, YT-1417) is a high-tech inspection equipment.It has the characteristics of easy portability, clear image, large imaging area, small size, light weight and flexibility.
It can quickly check out the guns, drugs, daggers and other items hidden in packages, vehicles, daily and office supplies for perspective observation, eliminate dangerous and harmful items, increase the work efficiency of law enforcement officers, and reduce the risk factor of law enforcement officers; trial use for security inspections , EOD, criminal technical investigation, mobile anti-smuggling and anti-drug, forensic autopsy and sampling inspection of small factory products.
Features
▲ HD: Pixel point: 0.1mm, the image resolution is much higher than similar products
▲ ultra thin: Imaging plate 15mm, can carry out security inspection without moving suspicious objects in a small space
▲ Portable: Built-in battery, built-in wireless module
▲ The product is simple and convenient to operate, and can realize image processing functions such as zoom in, zoom out, rotate, sharpen, smooth, invert color, false color, mirror image, window width and window level, ranging, 3D relief, dual-energy imaging, histogram adjustment, etc.
▲ dual energy imaging: Automatically integrates the images into a new color image by successively scanning with different working parameters.This color image uses different colors to distinguish the components of the test object to a certain extent, which is helpful to analyze the internal material composition of the test object
Detection board technical parameters
| name | 1417 | 1717 |
| size | 384mm×460mm×15mm | 460mm×460mm×15mm |
| scintillator type | Cesium iodide | Cesium iodide |
| Effective imaging area | 346mm×430mm | 430mm × 430mm |
| Image Resolution | 2304×2800 | 3072 × 3072 |
| pixel size | 150μm | 139μm |
| AD conversion bits | 16bit, 65536 gray levels | 16bit, 65536 gray levels |
| battery life | 8 hours | 8 hours |
| control method | Wired and wireless control | Wired and wireless control |
| Wireless transmission | 2.4G and 5G, IEEE802.11 a/b/g/n/ac | 2.4G and 5G, IEEE802.11 a/b/g/n/ac |
| weight | 3.3kg | 4.3kg |
| load bearing | Average 150kg | Average 150kg |
| Protection class | IPX1 | IPX1 |
| operating temperature | 5～35℃ | 5～35℃ |
| storage temperature | -20～55℃ | -20～55℃ |
| Spatial resolution | 3.4 (lP/mm) | 3.6 (lP/mm) |

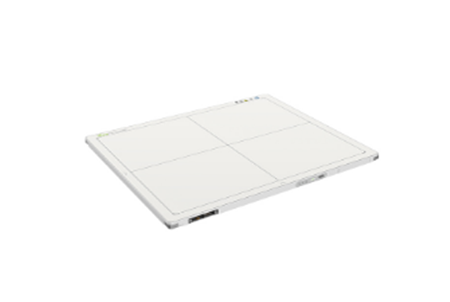

Flat panel detector
X-ray machine
X-ray machine technical parameters
| weight | 6.5kg |
| power supply | 48VDC |
| size | 399x140x203mm |
| The output voltage | 80～120KV |
| Output current | 0.5～1.0mA |
| Penetration | Can penetrate 30mm steel plate |
| control mode | RS232 interface control, WIFI |
beam of rays | 60° cone beam |
Software and Notebook Parameters
Provide the current mainstream configuration machine model, the CPU is not less than dual-core 1.8GHz, and the memory is not less than 4G.Notebooks can also be configured according to user needs

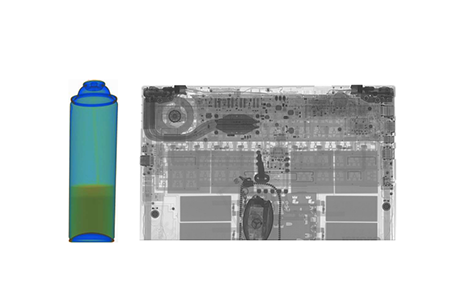

Imaging effect
Imaging effect
Imaging effect
